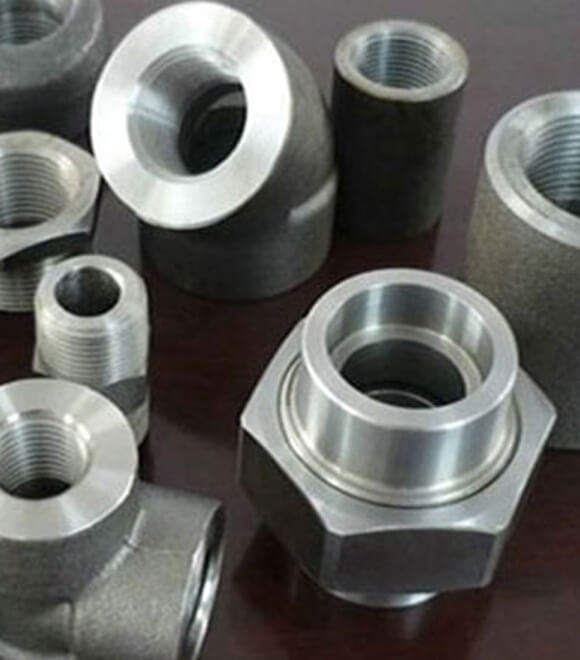

Hastelloy C22 Threaded Fittings

UNS N06022 Threaded Fittings, DIN 2.4602 Threaded Fittings

We are Manufacture, Suplier & Export of Hastelloy Alloy C22 Forged Threaded Fittings to the esteemed clients, which are designed and engineered utilizing advanced technology and high quality metals. Hastelloy C22 Forged Threaded Elbow Fittings (UNS N06022) has shown an outstanding resistance to a wide range of chemicals, including chlorides, organic and inorganic solutions. Hastelloy C22 Forged Threaded Tee Fittings also has excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with chlorine ions. It has been demonstrated that Hastelloy C22 Forged Threaded Fittings is more resistant to the oxidizing media, even at higher temperatures, than Hastelloy C22 UNS N06022 Threaded Fittings .

Be that as it may, in the reducing situations both UNS N06022 Threaded Fittings and UNS N10276 Forged Fittings act the same. Meanwhile, not only these WNR 2.4602 Threaded Fittings is resistant to oxidizing and reducing environments, but also to the inter-granular corrosion in the heat-affected zone (HAZ) of weldments. We offer these Hastelloy C22 products in custom-made shapes and sizes as per the requirements given by our clients, and that too at an affordable and market leading prices.

Specification Of Hastelloy C22 Threaded Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Screwed-Threaded
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 2000lb/ 3000lb/ 6000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees, Plugs.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
 C22 2.4602 N06022 NW 6022 NiCr21Mo14W

Chemical Composition

Grade C Mn Si S Co Ni Cr Fe Mo P
C22 0.010 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 min* 20.00 – 22.50 2.00 – 6.00 12.50 – 14.50 0.02 max

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
