Inconel 600 Threaded Fittings

UNS N06600 Threaded Fittings, DIN 2.4816 Threaded Fittings

We are Manufacture, Suplier & Export of Inconel 600 Threaded Forged Fittings, which can both hot formed and cold form using typical processes. Inconel Alloy 600 Threaded Forged Fittings is highly versatile and can be used in everything from cryogenics to applications that present elevated temperatures up to 2000 Degree F (1093 Degree C). Controlled chemical composition limits in Nickel Alloy 600 Threaded Forged Fittings are applied in the nuclear industry to eliminate the risk of stress corrosion cracking by high purity water containing chloride ions.

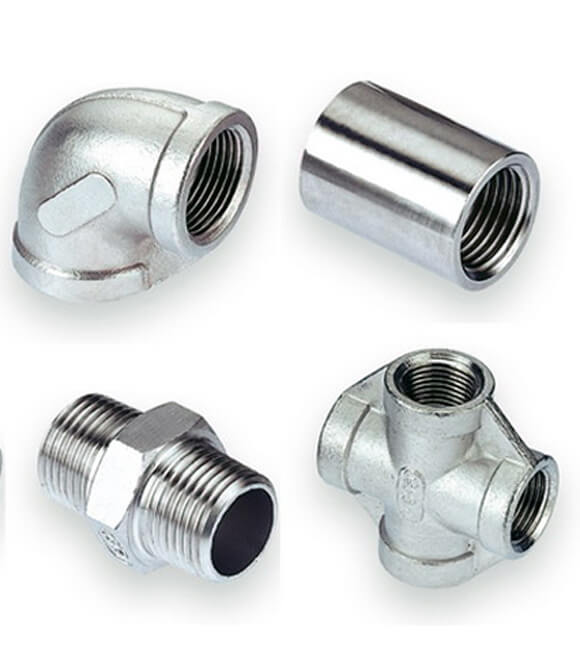

Our Inconel 600 Forged Threaded Elbow (UNS N06600) is used for furnace components, as well as chemical and food processing applications. These Inconel 600 Forged Threaded Tees resist aging and stress corrosion from annealed to extensively cold worked conditions. Our Inconel 600 Forged Threaded Cross has a high nickel concentration, which allows it to withstand reducing conditions.

Specification Of Inconel 600 Threaded Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Screwed-Threaded
Dimensions ASME 16.11, MInconel SP-79, 83, 95, 97, BS 3799
Class 2000lb/ 3000lb/ 6000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees, Plugs.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 600 2.4816 N06600 NCF 600 NA 13 МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe

Chemical Composition

Grade C Mn Si P S Cr Cu Ni Fe
Inconel 600 0.10 max 1.00 max 0.50 max – 0.015 max 21.00-25.00 1.00 max 58-63 Balance

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.1 g/cm3 1411 °C (2571 °F) Psi – 80000 , MPa – 550 Psi – 30000 , MPa – 205 30 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
