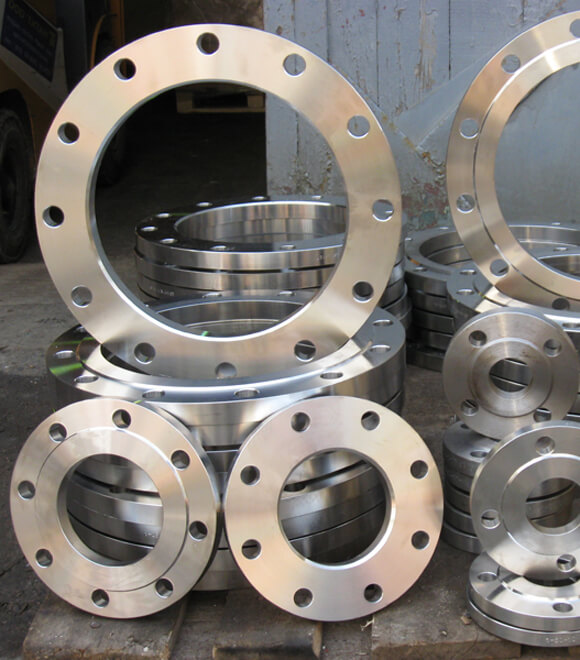

Inconel 600 Flanges

UNS N06600 Flange, DIN 2.4816 Flanges

We are Manufacturer, Supplier & Exporter of Inconel 600 Flanges (UNS N06600), Alloy 600 Flanges (UNS N06600), Inconel 600 Bridas in various sizes, dimensions and standards at market leading prices. The nickel content in Alloy 600 Flanges, Inconel 600 Bridas gives it excellent resistance to chloride-ion stress-corrosion cracking and also provides excellent resistance to alkaline solutions. Inconel 600 Flanges (UNS N06600), Inconel 600 Bridas grows a firmly adherent oxide scale that resists spalling as well under circumstances of stern thermal cycling. Inconel 600 Flanges (UNS N06600) is has outstanding mechanical features, non-magnetic, and displays the needed grouping of good weldability and high strength under a widespread collection of temp. It can be operated from cryogenic temperatures up to 340 Degree C (645 Degree F). It has good inoxidabilitiy in sulfur atmosphere. The field of use extends to industrial furnace retorts and muffles, baskets, jigs and fixtures, wire annealing tubes which have all been produced in this excellent high temperature material.

We are Manufacturer, Supplier & Exporter of Inconel 600 Flanges (UNS N06600), Inconel 600 Bridas in various sizes, dimensions and standards at market leading prices. These Flange are available from Stock 1/2" to 12" in various schedules as Inconel 600 Slip on Flange, Inconel 600 Blind Flange, Inconel 600 Weld Neck Flanges, Spectacle Blind Flanges, Socket Weld Flanges. If you do not find the size you are looking for or if you need Other Type of flanges please do contact us [email protected] .

Specification Chart of Inconel 600 Flanges

Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B



                  Raw Materials Certificate

                  100% Radiography Test Report

                  Third Party Inspection Report, etc

Production Technique Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing





AS, ANSI, BS, DIN and JIS

                  15 NB (1/2") to 200 NB (8")

                  Equal and Reducing Configurations

Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Manufacturer of

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.

                  -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange





B.S: BS4504 , BS3293, BS1560, BS10

                  AS 2129: Table D; Table E; Table H

                  ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

                  ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48

                  ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

                  American standard (ANSI)

                  German (DIN)

                  British standard (BS)



                  DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN  2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 600 Inconel Flanges

                  The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276



Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 600 2.4816 N06600 NCF 600 NA 13 МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe

Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
Inconel 600 0.15 max 1 max 0.50 max - 0.015 max 14 – 17 - 6 – 10 -

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
