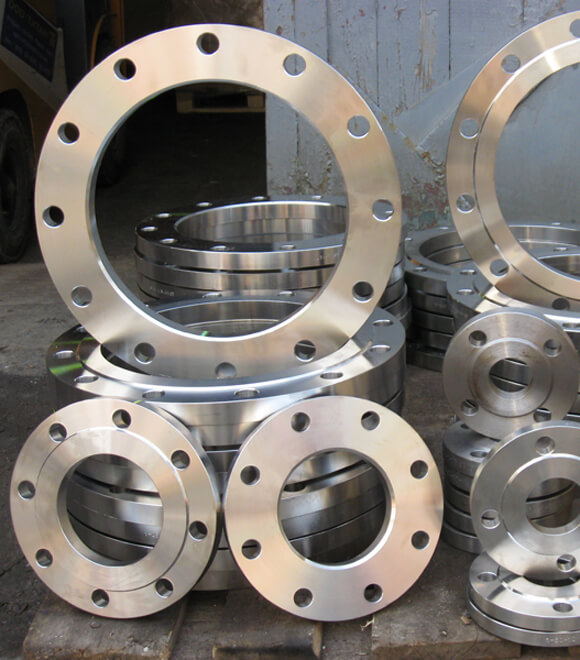

Inconel 925 Flanges

UNS N09925 Flange

We are Manufacturer, Supplier & Exporter of Incoloy 925 Flanges (UNS N09925), Incoloy 925 Bridas in various sizes, dimensions and standards at market leading prices. These Flange are available from Stock 1/2" to 12" in various schedules as Incoloy 925 Slip on Flange, Inconel 925 Blind Flange, Inconel 925 Weld Neck Flanges, Spectacle Blind Flanges, Socket Weld Flanges. If you do not find the size you are looking for or if you need Other Type of flanges please do contact us [email protected] .

Specification Chart of Incoloy 925 Flanges

Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production Technique Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Manufacturer of

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
-BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

B.S: BS4504 , BS3293, BS1560, BS10
AS 2129: Table D; Table E; Table H
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
American standard (ANSI)
German (DIN)
British standard (BS)

DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 825 Incoloy Flanges
The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Incoloy 925 – N09925

Chemical Composition

Grade Ni Cr Fe Si Mo Cu Mn C S Al
Incoloy 925 42 – 46 19.55 – 22.5 22 min 0.5 max 2.5 – 3.5 1.5 – 3.0 1.0 max 0.03 max 0.03 max 0.1 – 0.5

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.14 g/cm3 1343°C 650 300 30 %
