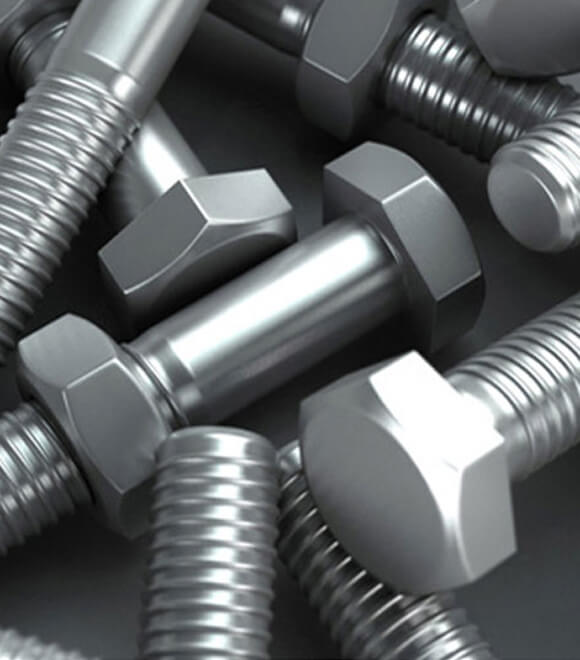

Hastelloy C22 Fasteners

UNS N06022 Fasteners, DIN 2.4602 Fasteners

We are Manufacture, Suplier & Export of Hastelloy C22 Fasteners that are being designed as per the national and international standard quality of raw materials and thus making sure of their durability and high quality. Our Hastelloy C22 Fasteners are being used in several industries such as chemical, power, semi-conductor and water industries. It is for that reason that Hastelloy B2 Fasteners have found its way into some of the most corrosive environments. Hastelloy C-22 is resistant to oxidizing acid chlorides, wet chlorine, formic and acetic acids, ferric and cupric chlorides, seawater, brine, and a variety of mixed or contaminated chemical solutions, both organic and inorganic.

Alloy C-22 should not be used in service temperatures above 1250° F due to the production of deleterious phases at higher temperatures. Hastelloy C22 Screws are utilized in flue gas desulfurization systems because they are highly resistant to sulfur compounds and chloride ions found in most scrubbers. Hastelloy C22 Studs are highly resistant to pitting and stress-corrosion cracking.

Specification Of Hastelloy C22 Fasteners

Standard ASTM B574 / A194, ASME SB574 / SA194
Size M 02 to M 33
Length 3 mm to 200 mm
Threads: METRIC, BSW, BSF, UNC, UNF or as required
Standard: DIN, ISO, JIS, GB, IS, BS, ASTM, ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • Stud Bolt length are defined in ASME B16.5 standard
  • Hex nuts are defined in ASME B18.2.2
  • ASME B18.5
  • BS en iso 3506

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Scope of Manufacturer
  • Up to M36 / 1-1/2” Dia, up to 1100mm lg
  • CNC Machined Fasteners, up to M100 / 4” Dia, up to 1500mm lg
Dia M6 to M64 (1/4" - 2.5")
Length 12 MM - 500 MM (Upto 20 Inch)
IS 1363, 1364
DIN 931, 933
ISO ISO 3506
Form of: Hex, Square, Round, Threading as per Gauge Etc.
Head Drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
Finishing: Zinc (yellow, white, blue, black), black oxide, , Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Passivated, Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET
Production Process M2-M24: Cold Froging, hot forging M24-M100, , machining and CNC for Customized connecting element
Types Nuts, Bolts, Screws, Socket Screw, Sockets, Studs, Screw, Nut, Spring Washers, Hex Set Screw, Socket Hexagon Head Screw, Cap Screw, Wing Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Studs, Anchors, Hex Nut,Marine Anchors, Hexagon Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Anchor Bolt, U- Bolts, J Bolts, T-Head Bolts, Mushroom Head Square Neck Bolts, Eye Bolt, Foundation Bolts, Structural Bolts

Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
Hastelloy C22 N06022 2.4602 – NiCr21Mo14W NW 6022 – –

Chemical Composition

Hastelloy C22 Ni C Mo Mn Si Fe P S Co Cr
Balance 0.010 max 12.5 – 14.5 0.50 max 0.08 max 2 – 6 0.02 max 0.02 max 2.5 max 20 – 22.5

Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.69 g/cm3 1399 °C (2550 °F) Psi – 45000 , MPa – 310 Psi – 1,00,000 , MPa – 690 45 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
