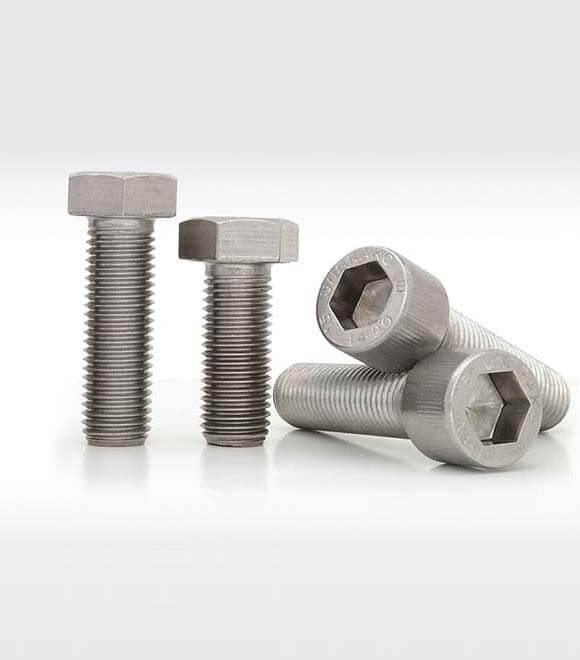

Inconel 800 Fasteners

UNS N08800 Fasteners, DIN 1.4876 Fasteners

We are Manufacturer, Supplier & Exporter of Inconel 800 Fasteners (N08800), Inconel 800 Fasteners in various sizes, dimensions and standards at market leading prices. These Fasteners are available from Stock M3 – M56 | 3/6″ to 2″ | Custom Sizes in various Standerds as Inconel 800 Bolts, Inconel 800 Washers, Inconel 800 Nuts, Hex Bolts, Studs, Heavy Hex Nuts, Screw. If you do not find the size you are looking for or if you need Other Type of Fasteners please do contact us [email protected] .



Specification Of Inconel Alloy 800 Fasteners

Standard ASTM 408, ASME SB408
Size M 02 to M 33
Length 3 mm to 200 mm
Threads: METRIC, BSW, BSF, UNC, UNF or as required
Standard: DIN, ISO, JIS, GB, IS, BS, ASTM, ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • Stud Bolt length are defined in ASME B16.5 standard
  • Hex nuts are defined in ASME B18.2.2
  • ASME B18.5
  • BS en iso 3506

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Scope of Manufacturer
  • Up to M36 / 1-1/2” Dia, up to 1100mm lg
  • CNC Machined Fasteners, up to M100 / 4” Dia, up to 1500mm lg
Dia M6 to M64 (1/4" - 2.5")
Length 12 MM - 500 MM (Upto 20 Inch)
IS 1363, 1364
DIN 931, 933
ISO ISO 3506
Form of: Hex, Square, Round, Threading as per Gauge Etc.
Head Drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
Finishing: Zinc (yellow, white, blue, black), black oxide, , Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Passivated, Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET
Production Process M2-M24: Cold Froging, hot forging M24-M100, , machining and CNC for Customized connecting element
Types Nuts, Bolts, Screws, Socket Screw, Sockets, Studs, Screw, Nut, Spring Washers, Hex Set Screw, Socket Hexagon Head Screw, Cap Screw, Wing Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Studs, Anchors, Hex Nut,Marine Anchors, Hexagon Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Anchor Bolt, U- Bolts, J Bolts, T-Head Bolts, Mushroom Head Square Neck Bolts, Eye Bolt, Foundation Bolts, Structural Bolts

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T

Chemical Composition

Grade C Mn Si Fe S Cr Al-Ti Ni
800 min. – – – 39.5 – 19.0 0.15 30.0
max. 0.1 1.5 1.0 – 0.015 23.0 0.60 35.0

Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
800 Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa –205 30 – –
