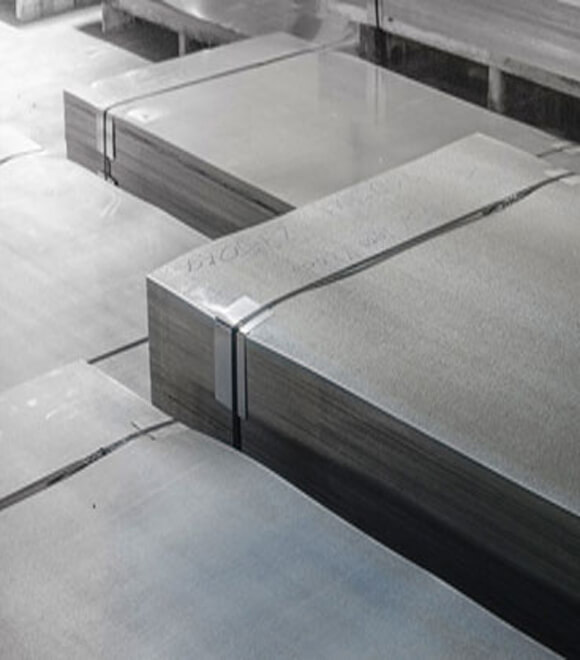

Hastelloy C22 Sheets Plates

UNS N06022 Plate, DIN 2.4602 Sheets

We are Manufacturer, Supplier & Exporter of Hastelloy Alloy C22 Sheets Plates Coils, which can also be successfully deep - drawn, spun, press formed or punched, although the alloy tends to work-harden. Hastelloy C22 Plates is a Nickel – Chromium – Molybdenum alloy with better overall resistance and versatility than any other Ni – Cr – Mo available. Hastelloy C22 Plates (UNS N06022) are used in Scrubbers, Heat exchangers, Reaction vessels, Evaporators and more. Welding can be done by gas tungsten-arc, gas metal-arc and shielded metal-arc processes. Our Alloy C22 Sheets can be cut using any conventional plasma arc cutting system. UNS N06022 Plates is used in pollution control, chemical processing, pulp and paper production, waste treatment, marine seawater applications, etc. When comparing the two alloys, there is little difference in corrosion resistant performance with one exception; Alloy C22 Sheets shows an improvement over Alloy C276 Sheets when used in certain saturated wet chlorine environments. Hastelloy C22 Plates are used in pollution control, chemical processing, pulp and paper production, and waste treatment.

We are Manufacturer, Supplier & Exporter of Hastelloy C22 Sheet & Plate (UNS N06022), Hastelloy C22 Plates in various sizes, dimensions and standards at market leading prices. These Sheets & Plates from thickness 0.5mm in various pre-cut sizes from stock, Hastelloy C22 Perforated Plate, Hastelloy C22 Hot & Cold Rolled Sheets, Chequered Plates, Polished Sheets. If you do not find the size you are looking for or if you need Other Type of Sheets & Plate please do contact us [email protected] .

Specification Of Hastelloy C22 Sheets & Plates

Specifications ASTM B575 / ASME SB575, BS EN 10088-2, en 10028-7, IS 6911
Dimension Standard MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range Cold rolled Plate 0.5-6.4 mm
Hot rolled Plate 3.0–10.0 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness 0.3 mm to 120 mm
International Standard ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510
Tolerances (width / thickness) EN 10258/ DIN 59381)
EN 10151
EN 10088
Finish 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Dealers & Distributor of SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material
Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
Hastelloy C22 2.4602 N06022 NW 6022 NiCr21Mo14W

Chemical Composition

Grade C Mn Si S Co Ni Cr Fe Mo P
C22 0.010 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 min* 20.00 – 22.50 2.00 – 6.00 12.50 – 14.50 0.02 max

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C22 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling



Prices of Hastelloy C22 Plate / Sheet :

Size FOB Price
730 X 2080 X 8.5 mm US $ 877
150X25X6.00 MM US $ 82
6mm X 0.600m X 0.8000 m US $ 252
3.00 X 1500 X3000 US $ 4.91/Kg
1 X 1 MTR X 40 mm Thk US $ 3120
200 MM X 60 X 3 MM US $ 73
4mm X 1500m X 3000m US $ 930
2 MTR X 2 MTR X6 MM THK US $ 2966
1M X 5M X6 mm THK US $ 5168
2 MTR X 2 MTR X2 MM THK US $ 2356
1 m X 1 m X 4mm THK US $ 876
10 mm THK X 4 FT X 8 FT US $ 2898
1500 X 3415 2 MM US $ 1214
10.00 X 200 X300 US $ 4.93/Kg
80 X 0.2 MM THK US $ 15.51/Kg
024 HEIGHT X 0.75 WIDE X 50M US $ 789
