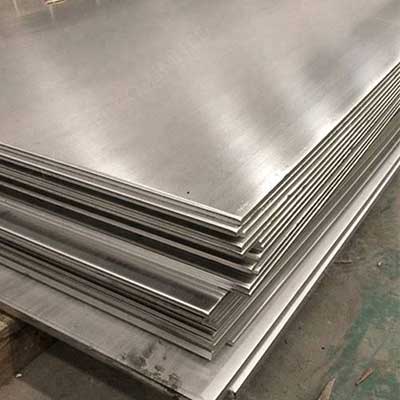

Inconel 600 Sheets Plates

UNS N06600 Plate, DIN 2.4816 Sheets

We are Manufacturer, Supplier & Exporter of Inconel 600 Sheets, Inconel 600 Plates and Coils that are being sourced by using high quality of raw material and makes sure to provide durability of highest quality of industry standard products. Inconel 600 Plates and Inconel 600 Sheets is a nickel-chromium alloy designed for the usage from cryogenic to high temperatures in the array of 2000°F (1093°C). Inconel 600 Sheets (UNS N06600) is non-magnetic, has excellent mechanical properties, and presents the desirable combination of high strength and good weldability under a wide range of temperatures. Inconel 600 Plates (UNS N06600) develops a tightly adherent oxide scale which resists spalling even under conditions of severe thermal cycling.

We are Manufacturer, Supplier & Exporter of Inconel 600 Sheet & Plate (UNS N06600), Inconel 600 Plates in various sizes, dimensions and standards at market leading prices. These Sheets & Plates from thickness 0.5mm in various pre-cut sizes from stock, Inconel 600 Perforated Plate, Inconel 600 Hot & Cold Rolled Sheets, Chequered Plates, Polished Sheets. If you do not find the size you are looking for or if you need Other Type of Sheets & Plate please do contact us [email protected] .

Specification Of Inconel 600 Sheets & Plates

Specifications ASTM B168 / ASME SB168, BS EN 10088-2, en 10028-7, IS 6911
Dimension Standard MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range Cold rolled Plate 0.5-6.4 mm
Hot rolled Plate 3.0–10.0 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness 0.3 mm to 120 mm
International Standard ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510
Tolerances (width / thickness) EN 10258/ DIN 59381)
EN 10151
EN 10088
Finish 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Dealers & Distributor of SAIL, ESSAR, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material
Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 600 2.4816 N06600 NCF 600 NA 13 МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe

Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 600 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling



Prices of Inconel 600 Plate / Sheet :

Size FOB Price
730 X 2080 X 8.5 mm US $ 877
150X25X6.00 MM US $ 82
6mm X 0.600m X 0.8000 m US $ 252
3.00 X 1500 X3000 US $ 4.91/Kg
1 X 1 MTR X 40 mm Thk US $ 3120
200 MM X 60 X 3 MM US $ 73
4mm X 1500m X 3000m US $ 930
2 MTR X 2 MTR X6 MM THK US $ 2966
1M X 5M X6 mm THK US $ 5168
2 MTR X 2 MTR X2 MM THK US $ 2356
1 m X 1 m X 4mm THK US $ 876
10 mm THK X 4 FT X 8 FT US $ 2898
1500 X 3415 2 MM US $ 1214
10.00 X 200 X300 US $ 4.93/Kg
80 X 0.2 MM THK US $ 15.51/Kg
024 HEIGHT X 0.75 WIDE X 50M US $ 789
