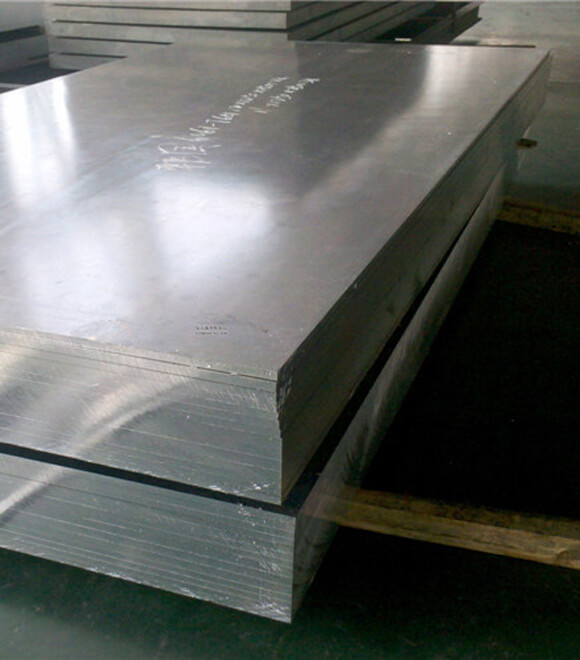

Hastelloy C276 Sheets Plates

UNS N10276 Plate, DIN 2.4819 Sheets

We are Manufacturer, Supplier & Exporter of Hastelloy Alloy C276 Sheets Plates Coils, which has excellent resistance to pitting, crevice corrosion and stress corrosion cracking. Pulp and paper production for example is in need of our Hastelloy C276 Plates that can withstand the chemicals used for the treatment of certain types of paper. Hastelloy C276 Sheets, Plates and Coils (also referred as WNR 2.4819) that are actually manufactured from High Quality of Standard Raw Materials and are designed as per with national and international standards. Alloy C276 Sheets has excellent resistance to strong oxidizers like ferric and cupric chlorides, hot contaminated media (organic and inorganic), chlorine, formic and acetic acids, acetic anhydride, seawater, brine solutions, sulfur compounds, wet chlorine gas, hypochlorite and chlorine dioxide. Hastelloy C276 Plates have outstanding resistance to pitting, stress corrosion and crevice corrosion cracking. Hastelloy C276 Slatting Coils has excellent machinability, though the alloy work toughens as is correct of the nickel base alloys overall.

We are Manufacturer, Supplier & Exporter of Hastelloy C276 Sheet & Plate (UNS N10276), Hastelloy C276 Plates in various sizes, dimensions and standards at market leading prices. These Sheets & Plates from thickness 0.5mm in various pre-cut sizes from stock, Hastelloy C276 Perforated Plate, Hastelloy C276 Hot & Cold Rolled Sheets, Chequered Plates, Polished Sheets. If you do not find the size you are looking for or if you need Other Type of Sheets & Plate please do contact us [email protected] .

Specification Of Hastelloy C276 Sheets & Plates

Specifications ASTM B575 / ASME SB575, BS EN 10088-2, en 10028-7, IS 6911
Dimension Standard MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range Cold rolled Plate 0.5-6.4 mm
Hot rolled Plate 3.0–10.0 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness 0.3 mm to 120 mm
International Standard ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510
Tolerances (width / thickness) EN 10258/ DIN 59381)
EN 10151
EN 10088
Finish 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Dealers & Distributor of SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material
Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
Hastelloy C276 2.4819 N10276 NW 0276 ХН65МВУ NiMo16Cr15W ЭП760

Chemical Composition

Grade C Mn Si S Co Ni Cr Fe Mo P
C276 0.010 max 1.00 max 0.08 max 0.03 max 2.50 max 50.99 min* 14.50 – 16.50 4.00 – 7.00 15.00 – 17.00 0.04 max

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C276 8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52,000 , MPa – 355 40 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling



Prices of Hastelloy C276 Plate / Sheet :

Size FOB Price
730 X 2080 X 8.5 mm US $ 877
150X25X6.00 MM US $ 82
6mm X 0.600m X 0.8000 m US $ 252
3.00 X 1500 X3000 US $ 4.91/Kg
1 X 1 MTR X 40 mm Thk US $ 3120
200 MM X 60 X 3 MM US $ 73
4mm X 1500m X 3000m US $ 930
2 MTR X 2 MTR X6 MM THK US $ 2966
1M X 5M X6 mm THK US $ 5168
2 MTR X 2 MTR X2 MM THK US $ 2356
1 m X 1 m X 4mm THK US $ 876
10 mm THK X 4 FT X 8 FT US $ 2898
1500 X 3415 2 MM US $ 1214
10.00 X 200 X300 US $ 4.93/Kg
80 X 0.2 MM THK US $ 15.51/Kg
024 HEIGHT X 0.75 WIDE X 50M US $ 789
