Hastelloy B2 Pipe Fittings

UNS N10665 Pipe Fittings, DIN 2.4617 Fittings

We are a Manufacturer, Supplier and Exporter of Hastelloy B2 Buttweld Fittings that is Fabricated From High Quality Raw Materials. We manufacture these fittings using high grade of raw material by implementing most ultra modern technology. Hastelloy B2 Butt weld Fittings are Available in different forms and grades. Hastelloy B2 Butt Weld Pipe Fittings that are actually manufactured from High Quality of Standard Raw Materials and are designed as per with national and international standards. Alloy B2 Butt Weld Pipe Fittings are highly resistant to stress corrosion, cracking, and pitting. UNS N10665 Butt Weld Fittings are welded and used in the majority of chemical processing applications. Alloy B2 Butt Weld Fittings offered by Our Company is used for most chemical process applications in the welded condition, gasoline refining.

After working, anneal the material at a temperature between 2050 and 2150 degrees Fahrenheit, followed by a fast quench in a protected environment or in an agitated reducing quench bath. If you have a specific size and shape in mind, you can recommend it to them. They are quick and only provide high-quality products, leaving customers satisfied. They also provide their customers with the lowest prices for their products.

Specification Chart of Hastelloy B2 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200
BS : BS4504, BS4504, BS1560, BS10
JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316
GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380
EN: EN10253-1, EN10253-2
Types Seamless / ERW / Welded / Fabricated
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.

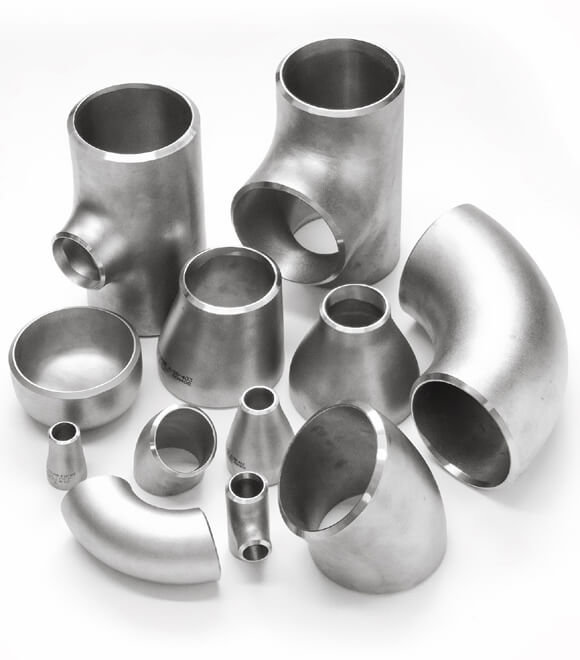

Specialized manufacturer of 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Equivalent Grades

STANDARD UNS WERKSTOFF NR.
Hastelloy B2 N10665 2.4617

Chemical Composition

Hastelloy B2 Ni C Mo Mn Si Fe P S Co Cr
Balance 0.02 max 26.0-30.0 1.0 max 0.10 max 2.0 max 0.040 max 0.030 max 1.0 max 1.0 max

Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
9.2 g/cm3 1370 °C (2500 °F) Psi – 51,000, MPa – 350 Psi -1,10,000, MPa -760 40 %
