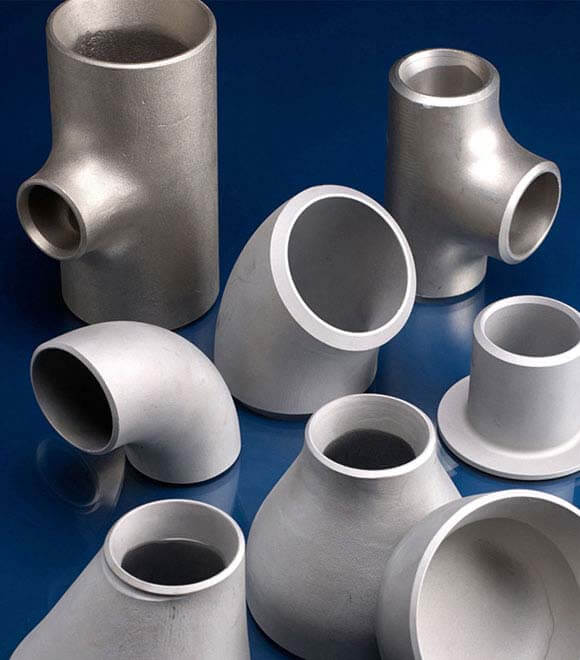

Hastelloy X Pipe Fittings

UNS N06002 Pipe Fittings, DIN 2.4665 Fittings

We are a Manufacturer, Supplier and Exporter of Hastelloy X Butt weld Fittings. These alloys are oxidation corrosion resistant material that had been well suited for all type of pressure and heat. It provides a wide protection layer which could able to sustain even in the high temperatures. It provides the best strength, fatigue and corrosion resistance as well as temperature compliance. But it is typical for you to fit in properly so you can get some once help while fitting it. Hastelloy X Pipe fittings. Hastelloy X is a nickel-chromium-iron-molybdenum super alloy with remaining high temperature strength, oxidation resistance, and fabric ability. Alloy X's corrosion resistance is excellent up to 2200° F.

This nickel steel alloy has also been originate to be exceptionally impervious to stress-corrosion cracking in petrochemical applications. Hastelloy X Bend Pipe Fittings have also been shown to be extremely resistant to stress-corrosion cracking in petrochemical environments. Hastelloy X Elbow Pipe Fittings is ideal for furnace applications due to its exceptional resistance to oxidizing, reducing, and neutral atmospheres.

Specification Chart of Hastelloy X Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200
BS : BS4504, BS4504, BS1560, BS10
JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316
GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380
EN: EN10253-1, EN10253-2
Types Seamless / ERW / Welded / Fabricated
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Specialized manufacturer of 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Equivalent Grades

STANDARD UNS WERKSTOFF NR.
Hastelloy X N06002 2.4665

Chemical Composition

Hastelloy X Ni C Mo Mn Si Fe Cu Ti Co Cr
Balance 0.05-0.15 8.0-10.0 1.0 max 1.0 max 17.0-20.0 0.50 max 0.15 max 0.5-2.5 20.5-23.0
