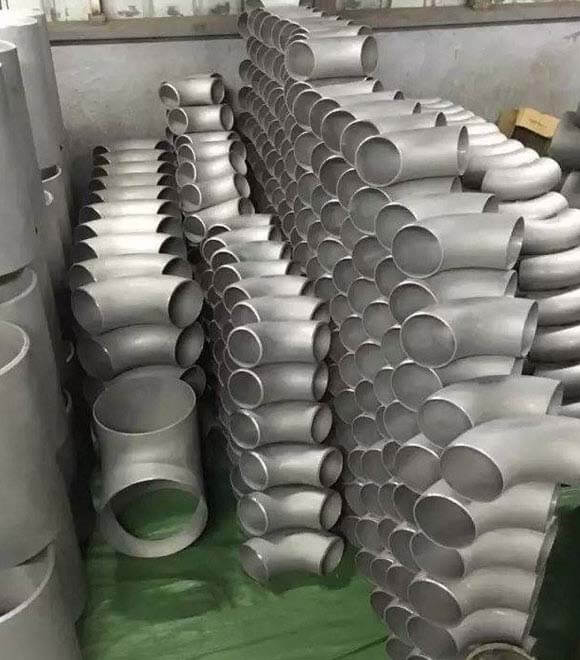

Hastelloy C22 Pipe Fittings

UNS N06022 Pipe Fittings, DIN 2.4602 Fittings

We are a Manufacturer, Supplier and Exporter of Hastelloy Alloy C22 Pipe Fittings, which is an excellent choice for a variety of applications that require superior performance. Welding of these Hastelloy C22 Butt Weld Fittings can be done by gas tungsten - arc, gas metal - arc and shielded metal - arc processes. Hastelloy C22 Pipe Fittings are acknowledged for its great features like high tensile strength and impact resistance. We offer esteemed clients best quality of products at reasonable price. These products meet both national and international standard and specifications like WERKSTOFF NR 2.4602, UNS NW6022 and EN NiCr21MO14W. Hastelloy C22 Elbow Pipe Fittings (UNS N06022) is extremely resistant to corrosion in oxidizing and reducing environments. The high chromium content in Hastelloy C22 Tee Pipe Fittings provides good resistance to oxidizing media. The molybdenum and tungsten content in Hastelloy C22 Cross Pipe Fittings gives good resistance to reducing media. Hastelloy C22 Reducer also withstands sulphuric, acetic, formic and phosphoric acids and other non – oxidizing media. Our Hastelloy C22 Cross Pipe Fittings is often used for pickling system components, plate heat exchangers, selective leaching systems, sulfur oxide cooling towers, sulphonation systems, and tubular heat exchangers.

We are Manufacturer, Supplier & Exporter of Hastelloy C22 Pipe Fittings (UNS N06022), Hastelloy C22 Fittings in various sizes, dimensions and standards at market leading prices. These Pipe Fittings are available from Stock 1/2″ – 10″ in various schedules as Hastelloy C22 Elbow, Hastelloy C22 Eccentric & Concentric Reducer, Hastelloy C22 Stub End, Long & Short Radius Elbow, Pipe End Cap. If you do not find the size you are looking for or if you need Other Type of Pipe Fittings please do contact us [email protected] .

Specification Chart of Hastelloy C22 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200
BS : BS4504, BS4504, BS1560, BS10
JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316
GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380
EN: EN10253-1, EN10253-2
Types Seamless / ERW / Welded / Fabricated
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Specialized manufacturer of 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
Hastelloy C22 2.4602 N06022 NW 6022 NiCr21Mo14W

Chemical Composition

Grade C Mn Si S Co Ni Cr Fe Mo P
C22 0.010 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 min* 20.00 – 22.50 2.00 – 6.00 12.50 – 14.50 0.02 max

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C22 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
