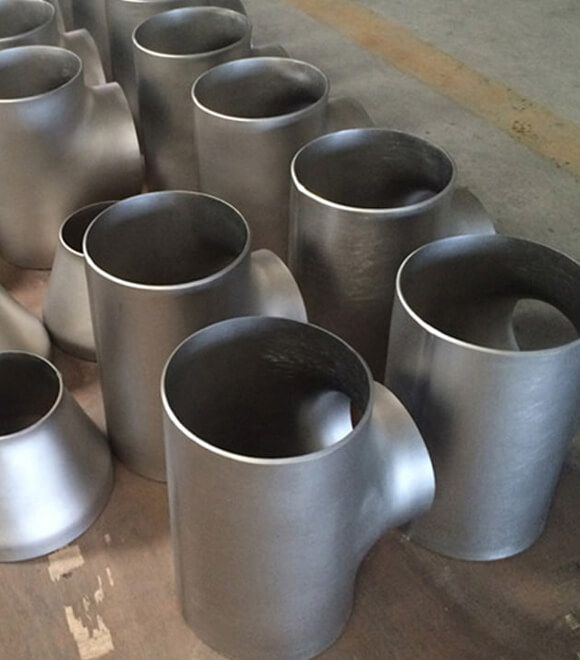

Hastelloy C276 Pipe Fittings

UNS N10276 Pipe Fittings, DIN 2.4819 Fittings

We are a Manufacturer, Supplier and Exporter of Hastelloy C276 Pipe Fittings. Our company is producing the wide variety of pipe fitting of the C276 grade like Hastelloy C276 elbows, Hastelloy C276 pipe end cap, Hastelloy C276 reducers, and Hastelloy C276 tees according to the international standard like API, ASME, and ASTM. Our company is supplying and doing importing and exporting of Hastelloy C276 pipes fittings in welded and seamless form to all part of the world. We are presenting a broad collection of these fittings. Carbon content of Alloy C276 Butt Weld Pipe Fittings (UNS N10276) must be maintained below 0.010 percent to minimize the formation of intermetallic carbides. Hastelloy C276 Butt Weld Pipe Fittings is generally considered the most versatile heat resistant and corrosion resistant alloy available. Alloy C276 Butt Weld Fittings has excellent corrosion resistance to most of corrosion media in oxidation and reduction environments. To obtain a reducing media in Hastelloy C276 Elbow Pipe Fittings, add 2 % (by volume) of either ethyl or propyl alcohol to water.

We are Manufacturer, Supplier & Exporter of Hastelloy C276 Pipe Fittings (UNS N10276), Hastelloy C276 Fittings in various sizes, dimensions and standards at market leading prices. These Pipe Fittings are available from Stock 1/2″ – 10″ in various schedules as Hastelloy C276 Elbow, Hastelloy C276 Eccentric & Concentric Reducer, Hastelloy C276 Stub End, Long & Short Radius Elbow, Pipe End Cap. If you do not find the size you are looking for or if you need Other Type of Pipe Fittings please do contact us [email protected] .

Specification Chart of Hastelloy C276 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200
BS : BS4504, BS4504, BS1560, BS10
JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316
GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380
EN: EN10253-1, EN10253-2
Types Seamless / ERW / Welded / Fabricated
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Specialized manufacturer of 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175



Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS OR GOST
Hastelloy C276 N10276 2.4819 NiMo16Cr15W NW 0276 ЭП760 ХН65МВУ

Chemical Composition

Hastelloy C276 Ni C Mo Mn Si Fe P S Co Cr
Balance 0.01 max 15 – 17 1.0 max 0.08 max 4 – 7 0.04 max 0.03 max 2.5 max 14.5 – 16.5

Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.89 g/cm3 1370 °C (2500 °F) Psi – 52,000 , MPa – 355 Psi – 1,15,000 , MPa – 790 40 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
