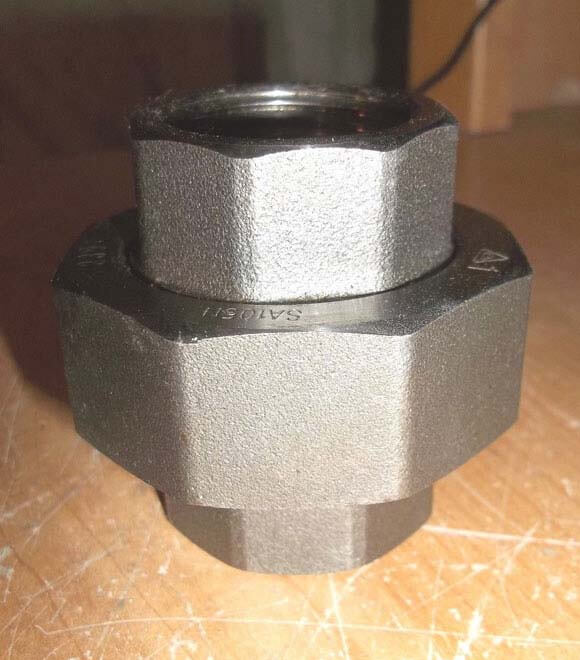

Hastelloy C22 SocketWeld Fittings

UNS N06022 Socketweld Fittings, DIN 2.4602 Socketweld Fittings

We are Manufacturer, Supplier & Exporter of Hastelloy C22 Socket Weld Fittings (UNS N06022), Hastelloy C22 Socket Weld Fittings in various sizes, dimensions and standards at market leading prices. These Socket Weld Fittings are available from Stock 1/8″ NB to 4″ NB in various schedules as Hastelloy C22 Socketweld Plug, Hastelloy C22 Socketweld Equal Tee, Hastelloy C22 Socketweld Union, Socketweld Elbow, Socketweld Cross, Socketweld Union. If you do not find the size you are looking for or if you need Other Type of Socketweld Fittings please do contact us [email protected] .

Specification Of Hastelloy C22 Socket Weld Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Socket Weld
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 3000/ 6000/ 9000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Hastelloy C22 2.4602 N06022 NW 6022 NiCr21Mo14W

Chemical Composition

Grade C Mn Si P S Co Mo Ni Fe Cr
Hastelloy C22 0.10 max 0.50 max 0.08 max 0.02 max 0.02 max 2.50 max 12.50 – 14.50 50.015 min* 2.00 – 6.00 20.00 – 22.50

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
