Inconel 718 Socketweld Fittings

UNS N07718 Socketweld Fittings, DIN 2.4668 Socketweld Fittings

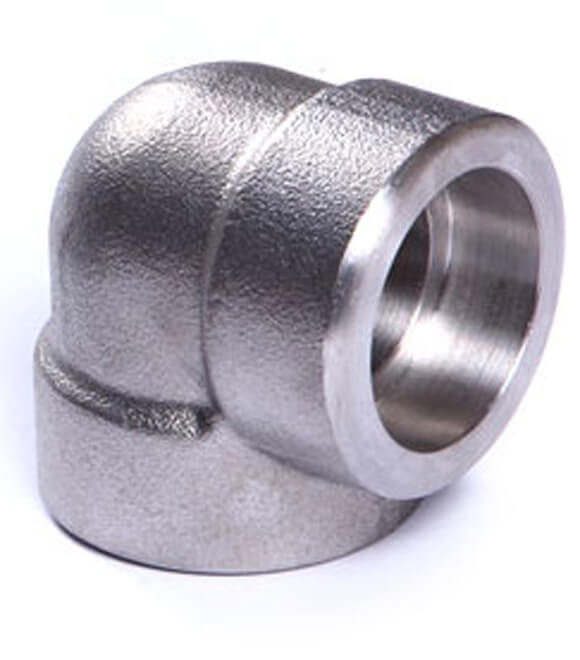

We are Manufacturer, Supplier & Exporter of Inconel 718 Socket Weld Fittings (UNS N07718), Inconel 718 Socket Weld Fittings in various sizes, dimensions and standards at market leading prices. These Socket Weld Fittings are available from Stock 1/8″ NB to 4″ NB in various schedules as Inconel 718 Socketweld Plug, Inconel 718 Socketweld Equal Tee, Inconel 718 Socketweld Union, Socketweld Elbow, Socketweld Cross, Socketweld Union. If you do not find the size you are looking for or if you need Other Type of Socketweld Fittings please do contact us [email protected] .

Specification Of Inconel 718 Socket Weld Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Socket Weld
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 3000/ 6000/ 9000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 718 2.4668 N07718

Chemical Composition

Grade C Mn Si P S Cr Cu Ni Fe
Inconel 718 0.08 max 0.35 max 0.35 max – 0.015 max 17 – 21 0.30 max 50.0-55.0 –

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.2 g/cm3 1350 °C (2460 °F) Psi –1,35,000 , MPa – 930 Psi – 75,000 , MPa – 482 45 %
