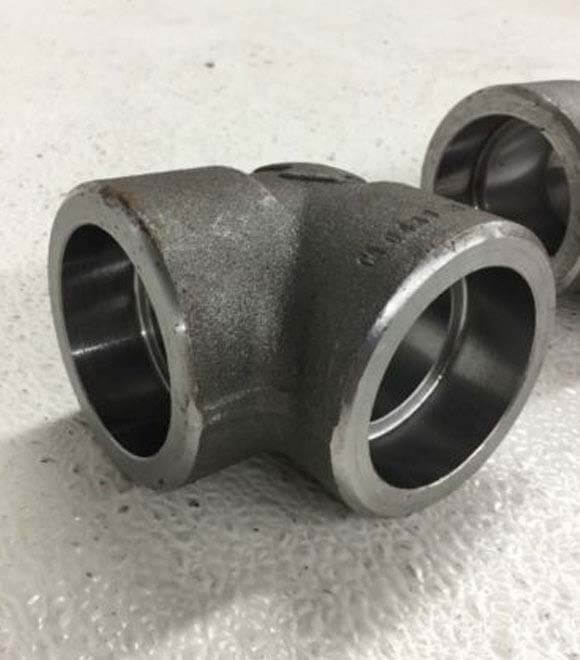

Nickel Alloy 201 Socketweld Fittings

UNS N02201 Socketweld Fittings, DIN 2.4068 Socketweld Fittings

We are Manufacturer, Supplier & Exporter of Nickel Alloy 201 Socket Weld Fittings (UNS N02201), Nickel Alloy 201 Socket Weld Fittings in various sizes, dimensions and standards at market leading prices. These Socket Weld Fittings are available from Stock 1/8″ NB to 4″ NB in various schedules as Nickel Alloy 201 Socketweld Plug, Nickel Alloy 201 Socketweld Equal Tee, Nickel Alloy 201 Socketweld Union, Socketweld Elbow, Socketweld Cross, Socketweld Union. If you do not find the size you are looking for or if you need Other Type of Socketweld Fittings please do contact us [email protected] .

Specification Of Nickel Alloy 201 Socket Weld Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Socket Weld
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 3000/ 6000/ 9000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Nickel 201 2.4068 N02201 NW 2201 NA 12 НП-2 – LC-Ni 99

Equivalent Grades

Grade C Mn Si P S Cu Mo Ni Fe
Nickel 201 0.02 max 0.35 max 0.35 max – 0.01 max 0.25 max – 99.00 min 0.40 max

Chemical Composition

Grade C Mn Si P S Cu Mo Ni Fe
Nickel 201 0.02 max 0.35 max 0.35 max – 0.01 max 0.25 max – 99.00 min 0.40 max
