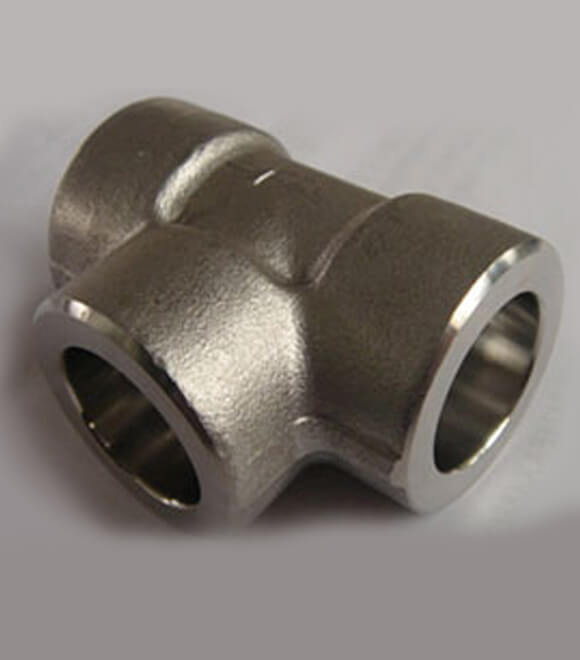

Monel 400 Socketweld Fittings

UNS N04400 Socketweld Fittings, DIN 2.4360 Socketweld Fittings

We are Manufacture, Suplier & Export of Monel 400 Socket Weld Fittings, Tee, Elbow , reducers, Cross, Stubent, Pipe Cap, Stub Ends, Couplings, Nipples, pipe bends, Union & Other Pipe Fittings. We Offer High Quality Monel 400 Socket Weld Fittings, & other Pipe Fittings in Stainless steel, Carbon steel, Alloy Steel, High Nickel Alloy & Copper Nickel. Our offered Monel 400 Socket welding Cap Fitting is especially resistant to de-areated hydrofluoric and hydrochloric acids but is rapidly attacked when exposed to ammonia systems and nitric acids. Monel 400 Socket Weld Forged Fittings (UNS N04400) has high toughness and strength over an extensive temperature array and outstanding resistance to a lot of corrosive atmospheres. We also offer these Monel Alloy Products in customized form with respect to its sizes and shapes to our clients.

Our Monel 400 Forged Socket Weld Coupling is not advised for use in oxidizing conditions or in the presence of ferric or cupric salts, as these might cause early corrosion failure. If these Monel 400 Forged Socket Weld Cross are used in an iron or copper-containing system with hydrochloric acid, they may fail prematurely.

Specification Of Monel 400 Socket Weld Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Socket Weld
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 3000/ 6000/ 9000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe

Chemical Composition

Grade C Mn Si P S Cu Mo Ni Fe
Monel 400 0.30 max 2 max 0.50 max 0.024 max 28 – 34 63.00 min 2.50 max

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.8 g/cm3 1350 °C (2550 °F) Psi – 80000 , MPa – 550 Psi – 35000 , MPa – 240 40 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
