Inconel 825 Socketweld Fittings

UNS N08825 Socketweld Fittings, DIN 2.4858 Socketweld Fittings

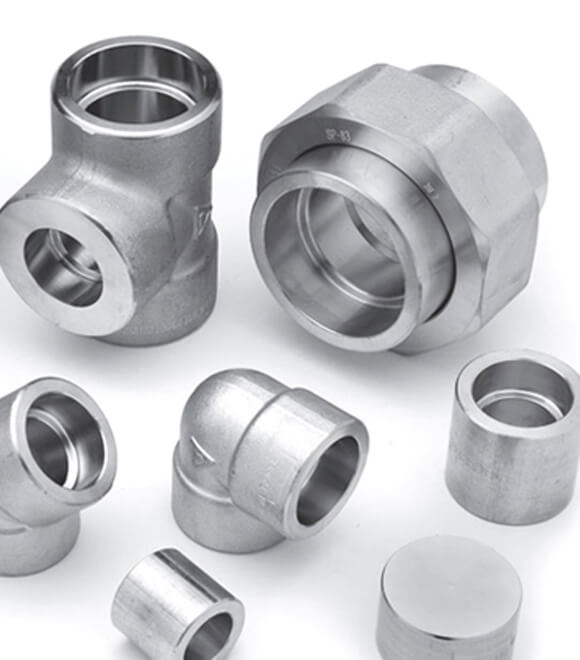

We are Manufacturer, Supplier & Exporter of Incoloy 825 Socket Weld Fittings (UNS N08825), Incoloy 825 Socket Weld Fittings in various sizes, dimensions and standards at market leading prices. These Socket Weld Fittings are available from Stock 1/8″ NB to 4″ NB in various schedules as Incoloy 825 Socketweld Plug, Incoloy 825 Socketweld Equal Tee, Incoloy 825 Socketweld Union, Socketweld Elbow, Socketweld Cross, Socketweld Union. If you do not find the size you are looking for or if you need Other Type of Socketweld Fittings please do contact us [email protected] .

Specification Of Incoloy 825 Socket Weld Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Socket Weld
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 3000/ 6000/ 9000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo

Chemical Composition

Grade C Mn Si Al S Cr Cu Ni Fe
Incoloy 825 0.05 max 1.0 max 0.5 max 0.02 0.03 max 19.50-23.50 1.50-3.00 30.0-35.0 22 min

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %
