Monel K500 Socketweld Fittings

UNS N05500 Socketweld Fittings, DIN 2.4375 Socketweld Fittings

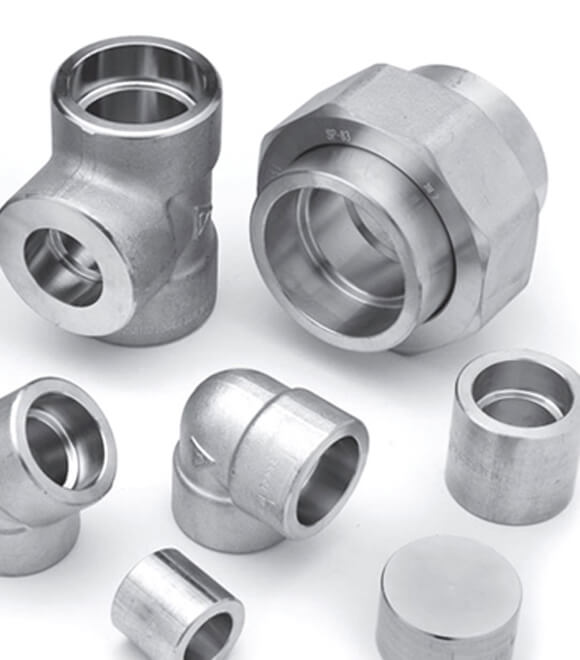

We are Manufacturer, Supplier & Exporter of Monel K500 Socket Weld Fittings (UNS N05500), Monel K500 Socket Weld Fittings in various sizes, dimensions and standards at market leading prices. These Socket Weld Fittings are available from Stock 1/8″ NB to 4″ NB in various schedules as Monel K500 Socketweld Plug, Monel K500 Socketweld Equal Tee, Monel K500 Socketweld Union, Socketweld Elbow, Socketweld Cross, Socketweld Union. If you do not find the size you are looking for or if you need Other Type of Socketweld Fittings please do contact us [email protected] .

Specification Of Monel K500 Socket Weld Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Socket Weld
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 3000/ 6000/ 9000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel K500 2.4375 N05500 – – – – –

Chemical Composition

Grade C Mn Si P S Cu Mo Ni Fe
Monel K500 0.25 max 1.5 max 0.50 max – 0.010 max 27 – 33 – 63.00 min 0.5-2 max

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.44 g/cm3 1350 °C (2550 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %
