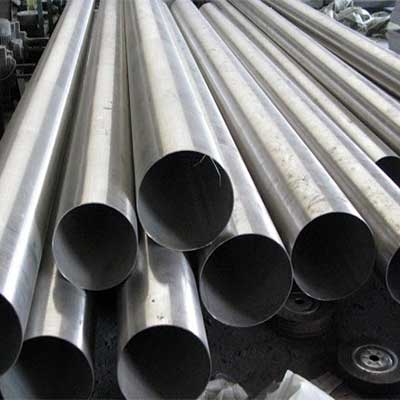

Inconel 600 Pipe Tubes

UNS N06600 Pipes, DIN 2.4816 Pipes

We are Manufacturer, Supplier and Exporter of Inconel 600 Pipes and Tubes, ASTM B163 Inconel 600 Seamless Pipe that are actually manufactured from High Quality of Standard Raw Materials andare designed as per with national and international standards. These pipes are highly resistant to heat and corrosion. Hardened by cold work, our range of Inconel pipes has additional strength. The Inconel 600 Seamless Tubes UNS N06600 ASTM B163 are manufactured to sustain very high pressure and product warranty. These Inconel 600 Welded Pipes and Tubes retain potency over an extensive temperature range, striking for high-temperature functions where steel and aluminium would yield to creep because of thermally persuaded crystal vacancies. we offer these Inconel Alloy 600 Pipes and Tubes in uniquely crafted sizes and thicknesses, according to the precise requests of our regarded customers. Inconel 600 EFW Pipes is often used in Chemical industry and Aerospace applications.

We are Manufacturer & Supplier of Inconel 600 Pipe & Tubes in India. These Pipe Seamless / Welded are available from 1/4"(13.72mm) NB x Sch10/10s(1.65mm)  wall to 6"(168.28mm) NB x Sch40/40s(7.11mm) wall in various lengths from stock. If you do not find the size you are looking for or if you need Other Size of Pipe & Tubes please do contact us [email protected] .

Specification Of Inconel Alloy 600 Pipes & Tubes

600 Pipes Specifications ASTM B167, B517, B163, B516 / ASME SB167, SB517, SB163, SB516
Dimensional specification ANSI/ASME B36.19M, ANSI/ASME B36.10M
ASTM B167 B163 600 Seamless Pipe & Tube Size 1 / 2" NB - 16" NB
ASTM B167 B163 600 Welded Pipe & Tube Size 1 / 2" NB - 24" NB
ASTM B517 B516 600 EFW Pipe & Tube Size 6" NB - 24" NB
Outside Diameter 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Inconel 600 Pipes & Tubes Manufacturing Shapes Hydraulic, Round, Rectangle, Square, Hex, Honed
Inconel 600 Pipes & Tubes Manufacturing Techniques Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Inconel 600 Pipes & Tubes Schedule Thickness Range SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Inconel 600 Pipes & Tubes End Types Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends)
Delivery Condition of Inconel 600 Pipes & Tubes Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Surface Finish No.1, No.4, No.8 Mirror Finish, 2B
Value Added Services Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing
Inspection and Test Reports EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports
Marking Specification
Grade
Nominal Pipe Sizes
Pipe Schedule or Wall Thickness
Manufacturing Method (Seamless / Welded)
Heat Number
Manufacturer’s Name or Custom Logo - on request
Marked Pipe Sample: ANSI B36.19 ASTM A 312 TP 600 12" NB SCH 40S SEAMLESS HEAT NO. XXXX
Outside Finish 2B, No.4, No.1, No.8 Mirror Finish for Inconel Pipes, Finish as per customer Requirements
Delivery Condition Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Packing of Inconel 600 Pipes & Tubes Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials Sizes and Specifications other than above can be on request

Equivalent Grades

Grade UNS No Old British Euronorm GOST Japanese JIS
BS En No AFNOR
Inconel 600 N06600 NA 13 NiCr15Fe 2.4816 NC15FE11M МНЖМц 28-2,5-1,5 NCF 600

Chemical Composition

Grade C Mn Si Fe S Cr Cu Ni
600 min. 6.0 14.0 72.0
max. 0.15 1.0 0.5 10.0 0.015 17.0 0.5

Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
600 Psi – 95,000 , MPa -655 Psi – 45,000 , MPa – 310 40


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
