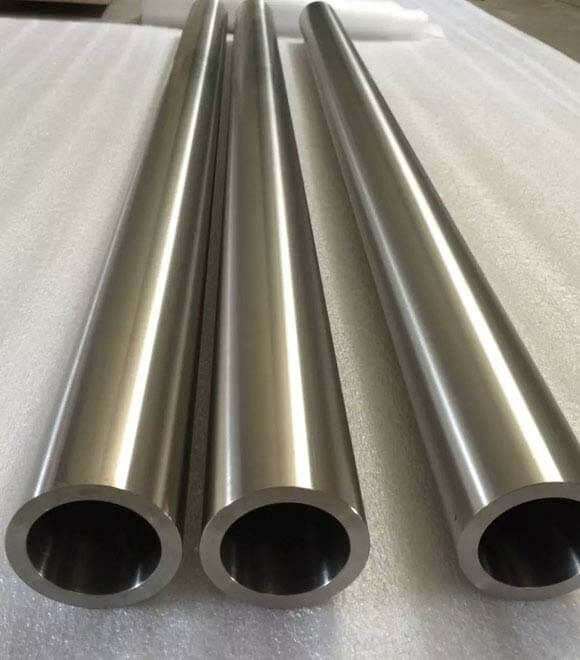

Monel K500 Pipe Tubes
UNS N05500 Pipes, DIN 2.4375 Pipes
We are Manufacturer & Supplier of Monel K500 Pipe & Tubes in India. These Pipe Seamless / Welded are available from 1/4"(13.72mm) NB x Sch10/10s(1.65mm) wall to 6"(168.28mm) NB x Sch40/40s(7.11mm) wall in various lengths from stock. If you do not find the size you are looking for or if you need Other Size of Pipe & Tubes please do contact us [email protected].
Specification Of Monel Alloy K500 Pipes & Tubes
| K500 Pipes Specifications | ASTM B163, B517, B163, B516 / ASME SB163, SB517, SB163, SB516 |
|---|---|
| Dimensional specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| ASTM B163 B163 K500 Seamless Pipe & Tube Size | 1 / 2" NB - 16" NB |
| ASTM B163 B163 K500 Welded Pipe & Tube Size | 1 / 2" NB - 24" NB |
| ASTM B517 B516 K500 EFW Pipe & Tube Size | 6" NB - 24" NB |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Monel K500 Pipes & Tubes Manufacturing Shapes | Hydraulic, Round, Rectangle, Square, Hex, Honed |
| Monel K500 Pipes & Tubes Manufacturing Techniques | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Monel K500 Pipes & Tubes Schedule Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Monel K500 Pipes & Tubes End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Delivery Condition of Monel K500 Pipes & Tubes | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Surface Finish | No.1, No.4, No.8 Mirror Finish, 2B |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking | Specification Grade Nominal Pipe Sizes Pipe Schedule or Wall Thickness Manufacturing Method (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo - on request Marked Pipe Sample: ANSI B36.19 ASTM A 312 TP K500 12" NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Monel Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Monel K500 Pipes & Tubes | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Monel K500 | N05500 | 2.4375 | – | – | – | – | – |
Chemical Composition
| Monel K500 | Ni | C | Al | Mn | Si | Fe | Cu | S | Ti | Cr |
| 63.0 min | 0.25 max | 2.3 – 3.15 | 1.5 max | 0.5 max | 05 – 2 | 27.0 – 33.0 | 0.010 max | 0.35 – 0.85 | – |
Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 1,60,000 , MPa – 1100 | 20 % |
