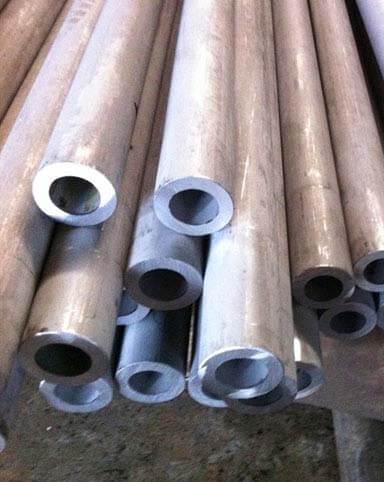

Monel 400 Pipe Tubes

UNS N04400 Pipes, DIN 2.4360 Pipes

We manufacturer, Supplier & Exporter of Monel 400 Pipes & Tubes that have remarkable thermal and mechanical properties, with a high tensile strength between 58-87 ski, giving them the power to work in heavy duty services. The Monel pipes are extensively used as piping systems in industries. They are resistant to not only steam but also to seawater, thus hold excellent anti-corrosion properties. We offer a wide range of monel 400 Pipes & Tubes that are made of qualitative raw material procured from reliable vendors. Known for its high quality, durability and high utility, these monel tubes are widely used in various industries across the globe. We produce and provide WNR 2.4361 Monel Seamless Pipes have an excellent surface condition and uniform hardness, are resistant to seawaters and brine waters flowing at higher speeds and can equally withstand alkalis and sulfuric acids. They are widely used in high tolerance tubing as it displays excellent weldability in seawater applications. They are also used in industrial plants.

We are Manufacturer & Supplier of Monel 400 Pipe & Tubes in India. These Pipe Seamless / Welded are available from 1/4"(13.72mm) NB x Sch10/10s(1.65mm)  wall to 6"(168.28mm) NB x Sch40/40s(7.11mm) wall in various lengths from stock. If you do not find the size you are looking for or if you need Other Size of Pipe & Tubes please do contact us [email protected] .

Specification Of Monel Alloy 400 Pipes & Tubes

400 Pipes Specifications ASTM B163, B517, B163, B516 / ASME SB163, SB517, SB163, SB516
Dimensional specification ANSI/ASME B36.19M, ANSI/ASME B36.10M
ASTM B163 B163 400 Seamless Pipe & Tube Size 1 / 2" NB - 16" NB
ASTM B163 B163 400 Welded Pipe & Tube Size 1 / 2" NB - 24" NB
ASTM B517 B516 400 EFW Pipe & Tube Size 6" NB - 24" NB
Outside Diameter 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Monel 400 Pipes & Tubes Manufacturing Shapes Hydraulic, Round, Rectangle, Square, Hex, Honed
Moonel 400 Pipes & Tubes Manufacturing Techniques Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Monel 400 Pipes & Tubes Schedule Thickness Range SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Monel 400 Pipes & Tubes End Types Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends)
Delivery Condition of Monel 400 Pipes & Tubes Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Surface Finish No.1, No.4, No.8 Mirror Finish, 2B
Value Added Services Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing
Inspection and Test Reports EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports
Marking Specification
Grade
Nominal Pipe Sizes
Pipe Schedule or Wall Thickness
Manufacturing Method (Seamless / Welded)
Heat Number
Manufacturer’s Name or Custom Logo - on request
Marked Pipe Sample: ANSI B36.19 ASTM A 312 TP 400 12" NB SCH 40S SEAMLESS HEAT NO. XXXX
Outside Finish 2B, No.4, No.1, No.8 Mirror Finish for Monel Pipes, Finish as per customer Requirements
Delivery Condition Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Packing of Monel 400 Pipes & Tubes Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials Sizes and Specifications other than above can be on request

Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
Monel 400 N04400 2.4360 NU-30M NiCu30Fe NW 4400 NA 13 МНЖМц 28-2,5-1,5

Chemical Composition

Monel 400 Ni C Al Mn Si Fe Cu S Co Cr
63.0 min 0.3 max 0.50 max 2.0 max 0.5 max 1.0 – 2.5 28.0 – 34.0 0.02 max

Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.8 g/cm3 1350 °C (2460 °F) Psi – 35,000 , MPa – 240 Psi – 80,000 , MPa – 550 40 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
