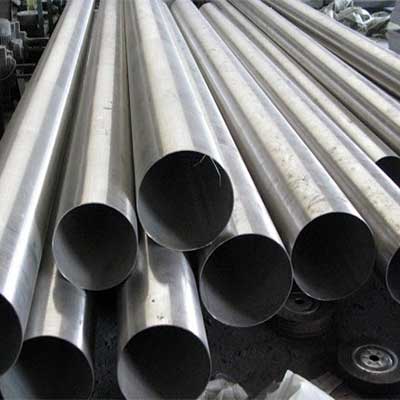

Inconel 825 Pipes Tubes
UNS N08825 Pipes, DIN 2.4858 Pipes
We are Manufacturer & Supplier of Incoloy 825 Pipe & Tubes in India. These Pipe Seamless / Welded are available from 1/4"(13.72mm) NB x Sch10/10s(1.65mm) wall to 6"(168.28mm) NB x Sch40/40s(7.11mm) wall in various lengths from stock. If you do not find the size you are looking for or if you need Other Size of Pipe & Tubes please do contact us [email protected] .
Specification Of Incoloy Alloy 825 Pipes & Tubes
| 825 Pipes Specifications | ASTM B167, B517, B163, B516 / ASME SB167, SB517, SB163, SB516 |
|---|---|
| Dimensional specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| ASTM B167 B163 825 Seamless Pipe & Tube Size | 1 / 2" NB - 16" NB |
| ASTM B167 B163 825 Welded Pipe & Tube Size | 1 / 2" NB - 24" NB |
| ASTM B517 B516 825 EFW Pipe & Tube Size | 6" NB - 24" NB |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Incoloy 825 Pipes & Tubes Manufacturing Shapes | Hydraulic, Round, Rectangle, Square, Hex, Honed |
| Incoloy 825 Pipes & Tubes Manufacturing Techniques | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Incoloy 825 Pipes & Tubes Schedule Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Incoloy 825 Pipes & Tubes End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Delivery Condition of Incoloy 825 Pipes & Tubes | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Surface Finish | No.1, No.4, No.8 Mirror Finish, 2B |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking | Specification Grade Nominal Pipe Sizes Pipe Schedule or Wall Thickness Manufacturing Method (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo - on request Marked Pipe Sample: ANSI B36.19 ASTM A 312 TP 825 12" NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Incoloy Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Incoloy 825 Pipes & Tubes | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
Equivalent Grades
| Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| Incoloy 825 | N08825 | NA 16 | NiCr21Mo | 2.4858 | NFE30C20DUM | ЭП703 | NCF 825 |
Chemical Composition
| Grade | C | Mn | Si | Fe | S | Cr | Cu | Ti | |
| 825 | min. | – | – | – | 22.0 | – | 19.5 | 1.5 | 0.6 |
| max. | 0.05 | 1.0 | 0.5 | – | 0.015 | 23.5 | 3.0 | 1.2 | |
Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 825 | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa –220 | 30 | – | – |
