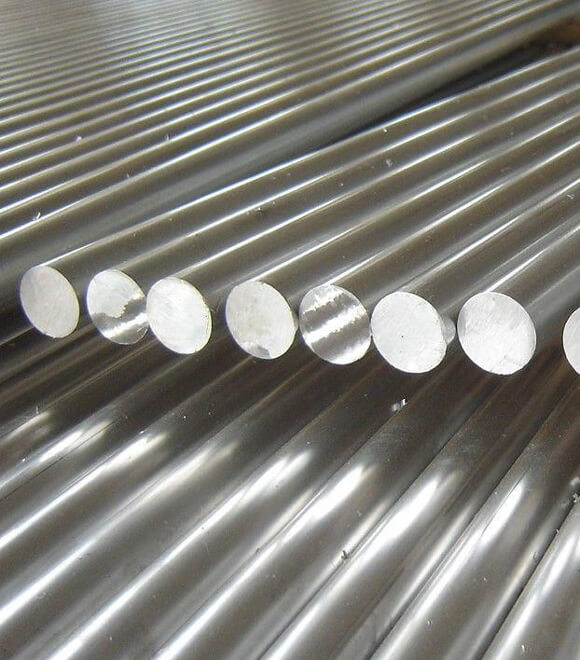

Hastelloy C22 Round Bars

UNS N06022 Round Bar, DIN 2.4602 Rods

We are Manufacturer, Supplier & Exporter of Hastelloy Alloy C22 Round Bars to the well – regarded customers. Hastelloy C22 Hex Bars is in fact an adaptable chromium – nickel – molybdenum alloy by means of enhanced overall corrosion resistance than any other Cr – Ni – Mo alloys accessible today. Hastelloy Alloy C22 Bright Bars especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media. These Hastelloy C22 Roune Bars are manufactured and inspected/tested to the relevant standards including ASTM, ASME. Our UNS N06022 Hastelloy Bars and rods are widely used in pharmaceutical industries, cellophane manufacturing, chlorination systems, pesticide production, chemical process industries, wastewater processing, pulp and paper production, marine seawater applications etc. We also have capabilities to manufacture and supply any custom size as per customers' specification and their requirements.

We are Manufacturer, Supplier & Exporter of Hastelloy C22 Bar (UNS N06022), Hastelloy C22 Rods in various sizes, dimensions and standards at market leading prices. These Round Bars are available from Stock 5 mm To 500 mm in various types as Hastelloy C22 Forged Bar, Hastelloy C22 Hex Bar, Hastelloy C22 Bright Bar, Flat Bar, Hexagonal Bar, Threaded Bar. If you do not find the size you are looking for or if you need Other Type of Round Bars please do contact us [email protected] .

Specification Of Hastelloy C22 Round Bars

Dimensions DIN, EN, ASTM, JIS, ASME, BS, AISI
Standard ASTM B574, ASME SB574
Hex Bar size 2-100mm A/F
Round bar size Diameter: 3-~800mm
Flat bar size Thickness: 2 -100mm
Width: 10 to 500mm
Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Square bar size 4 to 100mm
Channel Bar 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Rectangular Bars Section 3.0 to 12.0mm thickness
Threaded Bar Billet Size 1/2 to 495mm Diameter
Rectangles Size 33 x 30mm to 295 x 1066mm
Hollow Bar 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Surface Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished
Condition Hardened & tempered, annealed
Technique Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod
Processing Bar cutting to 650mm
Form Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.

Equivalent Grades

STANDARD UNS WNR. JIS EN
Hastelloy C22 N06022 2.4602 NW 6022 NiCr21Mo14W

Chemical Composition

Grade C Mn Si S Co Ni Cr Fe Mo P
Hastelloy C22 0.010 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 max 20.00 - 22.50 2.00 - 6.00 12.50 - 14.50 0.02 max

Mechanical Properties

Grade Tensile (ksi) .2% Yield (ksi) Elongation % Hardness (HRb)
C22 115 55 60 89


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
