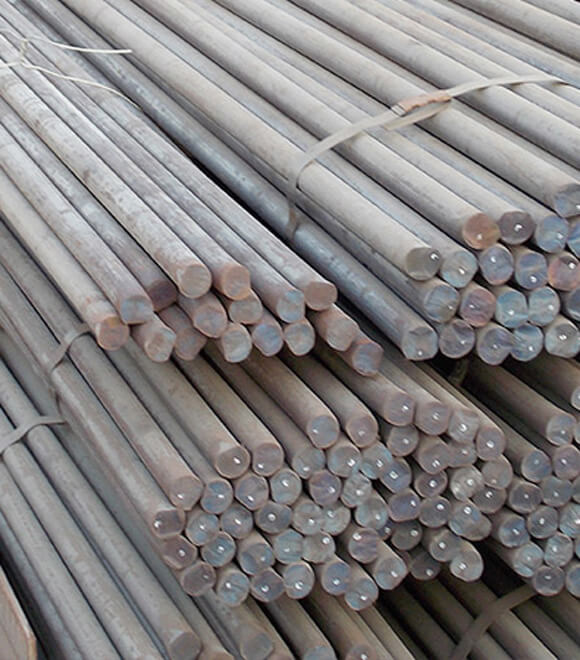

Nickel Alloy 201 Round Bars
UNS N02201 Round Bar, DIN 2.4068 Rods
We are Manufacture, Suplier & Export of Nickel Alloy 201 Round Bars in India.Nickel 201 Bars are manufactured by using higher quality ofalloys and in that way ensures exceptional durability. These Alloy 201 Round Bars are seamless for applications where higher strength and enhanced corrosion resistance is required. Alloy 201 Bars is a high purity nickel alloy commonly used for electrical resistant thermometers. UNS N02201 Round Bars are commercially pure wrought nickel, similar to Nickel 200 but with a lower carbon content to prevent embrittlement by intergranular carbon at temperatures beyond 600 degrees Fahrenheit (315 degrees Celsius). Nickel 200 and 201 may be hot molded into nearly any shape Round Bar.
The temperature range of 1200°F to 2250°F is advised and should be strictly followed, as the correct temperature is the most critical aspect in attaining hot malleability. We provide a variety of these bars, including Nickel 201 Bright Bars, Nickel 201 Hex Bars, Nickel 201 Black Bars, Nickel 201 Flat Bars, Nickel 201 Billets Bars, and Nickel 201 Forged Bars.
Specification Of Nickel Alloy 201 Round Bars
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|
| Standard | ASTM B160, ASME SB160 |
| Hex Bar size | 2-100mm A/F |
| Round bar size | Diameter: 3-~800mm |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Square bar size | 4 to 100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | LC-Ni 99 |
Chemical Composition
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.25 max | 0.01 min | 0.40 max | – | 99 min | – |
Mechanical Properties
| nsity | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67,000 , MPa – 462 | Psi – 21,500 , MPa – 148 | 45 % |
