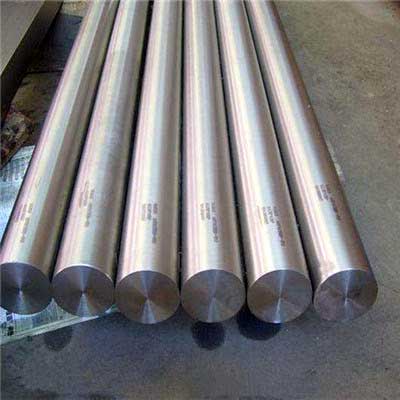

We are Manufacturer, Supplier & Exporter of Incoloy 800 / 800H / 800HT Bar (UNS N08800, N08810, N08811), Incoloy 800 Rods in various sizes, dimensions and standards at market leading prices. These Round Bars are available from Stock 5 mm To 500 mm in various types as Inconel 800 Forged Bar, Inconel 800H Hex Bar, Inconel 800HT Bright Bar, Flat Bar, Hexagonal Bar, Threaded Bar. If you do not find the size you are looking for or if you need Other Type of Round Bars please do contact us [email protected] .
Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
---|---|
Standard | ASTM B166, ASME SB166 |
Hex Bar size | 2-100mm A/F |
Round bar size | Diameter: 3-~800mm |
Flat bar size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
Square bar size | 4 to 100mm |
Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
Rectangular Bars Section | 3.0 to 12.0mm thickness |
Threaded Bar Billet Size | 1/2 to 495mm Diameter |
Rectangles Size | 33 x 30mm to 295 x 1066mm |
Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
Condition | Hardened & tempered, annealed |
Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
Processing | Bar cutting to 650mm |
Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 |
Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 |
Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 |
Grade | C | Mn | Si | Al | S | Cr | Cu | Ni | Fe |
Incoloy 800 | 0.10 max | 1.50 max | 1 max | 0.15 – 0.60 | 0.015 max | 19.0-23.0 | 0.75 max | 30.0-35.0 | 39.5 min |
Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1 max | 0.15 – 0.60 | 0.015 max | 19.0-23.0 | 0.75 max | 30.0-35.0 | 39.5 min |
Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1 max | 0.15 – 0.60 | 0.015 max | 19.0-23.0 | 0.75 max | 30.0-35.0 | 39.5 min |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
