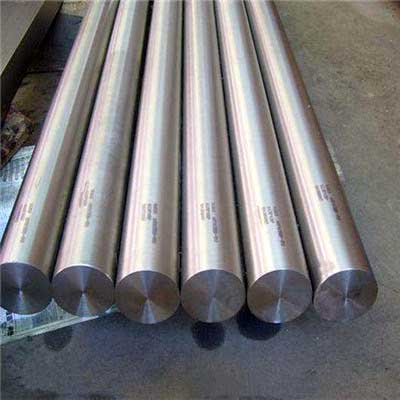

Inconel 825 Round Bars
UNS N08825 Round Bar, DIN 2.4858 Rods
We are Manufacturer, Supplier & Exporter of Incoloy 825 Bar (UNS N08825), Incoloy 825 Rods in various sizes, dimensions and standards at market leading prices. These Round Bars are available from Stock 5 mm To 500 mm in various types as Incoloy 825 Forged Bar, Incoloy 825 Hex Bar, Incoloy 825 Bright Bar, Flat Bar, Hexagonal Bar, Threaded Bar. If you do not find the size you are looking for or if you need Other Type of Round Bars please do contact us [email protected] .
Specification Of Incoloy 825 Round Bars
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|
| Standard | ASTM B425, ASME SB425 |
| Hex Bar size | 2-100mm A/F |
| Round bar size | Diameter: 3-~800mm |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Square bar size | 4 to 100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Chemical Composition
| Grade | C | Mn | Si | Al | S | Cr | Cu | Ni | Fe | Ti |
| Incoloy 800 | 0.05 max | 1.00 max | 0.05 max | 0.02 max | 0.03 max | 19.50-23.50 | 1.50-3.00 | 38.0-46.0 | 22.0 min | 0.06 – 1.20 |
Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
