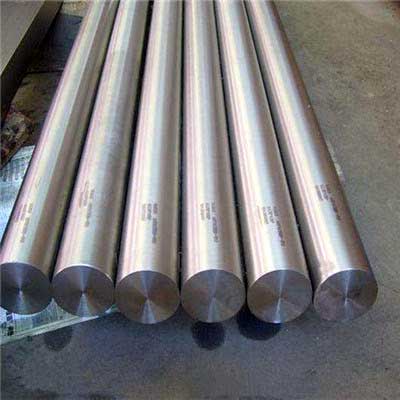

Inconel 601 Round Bars

UNS N06601 Round Bar, DIN 2.4851 Rods

We are Manufacturer, Supplier & Exporter of Inconel 601 Bar (UNS N06601), Inconel 601 Rods in various sizes, dimensions and standards at market leading prices. These Round Bars are available from Stock 5 mm To 500 mm in various types as Inconel 601 Forged Bar, Inconel 601 Hex Bar, Inconel 601 Bright Bar, Flat Bar, Hexagonal Bar, Threaded Bar. If you do not find the size you are looking for or if you need Other Type of Round Bars please do contact us [email protected] .

These Inconel 601 Flat Bars can also be hardened and strengthened through cold work. Inconel 601 Threaded Bars has lower rate of attack from chlorine or hydrogen chloride. A minimum treatment of 1650 Degree F for one hour is suggested in these Inconel 601 Hex Bars, but 1800 Degree F – 1850 Degree F for one hour preferred. Inconel 601 Flat Bars is a solid solution nickel chromium alloy for high temperature heat resistance. Inconel 601 Bright Bars is either annealed at around 2000 Degree F or solution treated at around 2100 Degree F, both followed by air cooling.

Specification Of Inconel 601 Round Bars

Dimensions DIN, EN, ASTM, JIS, ASME, BS, AISI
Standard ASTM B166, ASME SB166
Hex Bar size 2-100mm A/F
Round bar size Diameter: 3-~800mm
Flat bar size Thickness: 2 -100mm
Width: 10 to 500mm
Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Square bar size 4 to 100mm
Channel Bar 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Rectangular Bars Section 3.0 to 12.0mm thickness
Threaded Bar Billet Size 1/2 to 495mm Diameter
Rectangles Size 33 x 30mm to 295 x 1066mm
Hollow Bar 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Surface Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished
Condition Hardened & tempered, annealed
Technique Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod
Processing Bar cutting to 650mm
Form Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 601 2.4851 N06601 NCF 601 NA 49 XH60BT NC23FeA NiCr23Fe

Chemical Composition

Grade C Mn Si Cu S Fe Mo Ni Cr
Inconel 601 0.10 max 1 max 0.50 max 1 max 0.15 min balance 58.0-63.0 21.0–25.0

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.1 g/cm3 1411 °C (2571 °F)  Psi – 80,000 , MPa – 550 Psi – 30,000 , MPa – 205 30 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
