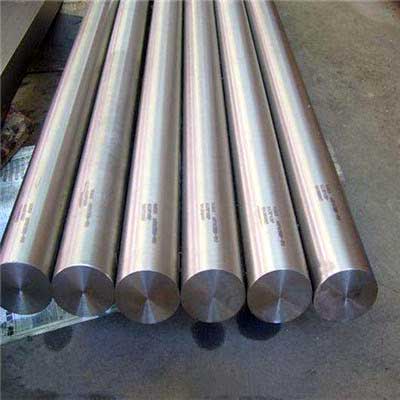

Inconel 625 Round Bars

UNS N06625 Round Bar, DIN 2.4856 Rods

We are Manufacturer, Supplier & Exporter of Inconel 625 Round Bars. we are approved suppliers on Inconel 625 Round bar in Indian Oil,BHEL,NTPC,Hawa Valve & 50 other large size Organisations in INDIA & Overseas, We Manufacture Inconel 625 Bars as per WERKSTOFF NR. 2.4856 ,being PED approved Manufacturer of UNS N06625 Bars, Inconel 625 bars. We offer these Inconel 625 Rods in international and national quality of standards at cost-effective rates to our patrons. Inconel Alloy 625 Rods can be formed using various cold and hot working processes. For machineability in these Inconel 625 Rods - Low cutting speeds, rigid tools and work piece, heavy equipment, ample coolant and positive feeds are general recommendations. However, these Alloy 625 Round Bars (UNS N06625) does work-harden rapidly so intermediate annealing treatments may be needed for complex component forming operations. Our Inconel 601 Round bars & rods used in various industrial applications industries ranging from basic industries such as Sugar, Paper, Textile, Dairy, and Engineering to more complexes such as Oil & Gas etc.

We are Manufacturer, Supplier & Exporter of Inconel 625 Bar (UNS N06625), Inconel 625 Rods in various sizes, dimensions and standards at market leading prices. These Round Bars are available from Stock 5 mm To 500 mm in various types as Inconel 625 Forged Bar, Inconel 625 Hex Bar, Inconel 625 Bright Bar, Flat Bar, Hexagonal Bar, Threaded Bar. If you do not find the size you are looking for or if you need Other Type of Round Bars please do contact us [email protected] .

Specification Of Inconel 625 Round Bars

Dimensions DIN, EN, ASTM, JIS, ASME, BS, AISI
Standard ASTM B166, ASME SB166
Hex Bar size 2-100mm A/F
Round bar size Diameter: 3-~800mm
Flat bar size Thickness: 2 -100mm
Width: 10 to 500mm
Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Square bar size 4 to 100mm
Channel Bar 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Rectangular Bars Section 3.0 to 12.0mm thickness
Threaded Bar Billet Size 1/2 to 495mm Diameter
Rectangles Size 33 x 30mm to 295 x 1066mm
Hollow Bar 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Surface Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished
Condition Hardened & tempered, annealed
Technique Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod
Processing Bar cutting to 650mm
Form Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NC22DNB4M NiCr22Mo9Nb

Chemical Composition

Grade C Mn Si Cu S Fe Mo Ni Cr
Inconel 625 0.10 max 0.50 max 0.50 max 0.15 min 5.0 max 58.0 min 20.0–23.0

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.4 g/cm3 1.350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
