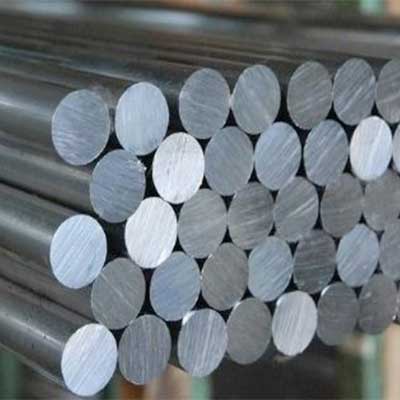

Monel K500 Round Bars

UNS N05500 Round Bar, DIN 2.4375 Rods

We are Manufacturer, Supplier & Exporter of Monel Alloy K500 Round Bars in India. Monel K500 Round Bars is a nickel-copper alloy, precipitation hardenable in the course of additions of titanium and aluminum. Monel K500 Round Bars (also known as UNS N05500 Round Bars) are created from high-quality standard raw materials and engineered to meet national and international standards. Alloy K500 Bars are a nickel-copper alloy with high strength and excellent corrosion resistance in a variety of conditions such as seawater, hydrofluoric acid, sulfuric acid, and alkalis. These round bars, also known as UNS N04405, are available in bespoke diameters and thicknesses to meet the specific needs of clients.

We have the capacity and infrastructure to export Alloy K-500 bars around the world. All Monel K500 bars, rods and wires manufactured and supplied by Mangalam Metal meet national and international standards. Monel Alloy K500 Rods are ideal for centrifugal pumps in the maritime industry due to their high strength and low corrosion rates in high-velocity seawater.

Specification Of Monel K500 Round Bars

Dimensions DIN, EN, ASTM, JIS, ASME, BS, AISI
Standard ASTM B164, ASME SB164
Hex Bar size 2-100mm A/F
Round bar size Diameter: 3-~800mm
Flat bar size Thickness: 2 -100mm
Width: 10 to 500mm
Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Square bar size 4 to 100mm
Channel Bar 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Rectangular Bars Section 3.0 to 12.0mm thickness
Threaded Bar Billet Size 1/2 to 495mm Diameter
Rectangles Size 33 x 30mm to 295 x 1066mm
Hollow Bar 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Surface Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished
Condition Hardened & tempered, annealed
Technique Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod
Processing Bar cutting to 650mm
Form Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS GOST BS AFNOR EN
Monel K500 2.4375 N05500

Chemical Composition

Grade C Mn Si Cu Fe Ni S
Monel K500 0.25 max 1.5 max 0.5 max 27.00 – 33.00 0.5 – 2 63.00 min 0.010 max

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.44 g/cm3 1350 °C (2460 °F) Psi – 1,60,000 , MPa – 1100 Psi – 1,15000 , MPa – 790 20%


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
